Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm

1 ENSEMBLE
MOQ
Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Fonctions: Formage de bobines de plastique et reliure de bobines de plastique
Taille minimum du livre: Minimum 72 mm x 72 mm
Taille maximale du livre: Maximum 420 mm x 300 mm
épaisseur du livre: Jusqu'à 25 mm
Matériel: PVC
Dia spirale: 8- 30mm
Pouvoir: 3ph 380V, 8KW
Vitesse: jusqu'à 700 livres/heure
Informations de base
Lieu d'origine: Chine
Nom de marque: BINPENG
Certification: CE
Numéro de modèle: PS420
Conditions de paiement et expédition
Détails d'emballage: Boîte en bois
Délai de livraison: 30 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: 10 sets par mois
Description de produit

Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm

Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm 0

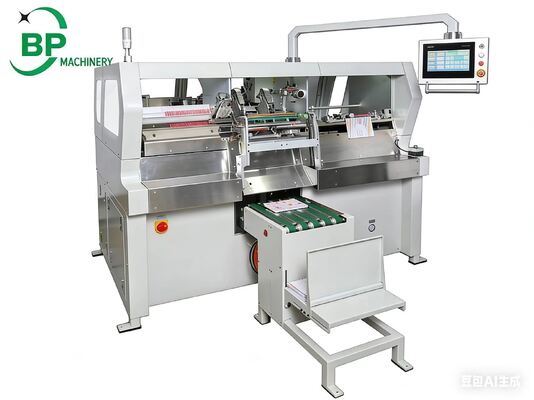

PS420 plastic coil forming and binding machine is a perfect machine used for printing factory to do many differ size and differ thickness book which need be used for plastic coil binding.  Machine developed by our partner company (NINGBO CREATIVE AUTOMATIC  CO.,LTD )



Application :

Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm 1Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm 2Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm 3Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm 4



Machine can do differ book size from min A7 book to max size A3 size book ,also for differ book thickness which more than 20mm . But this machine request you punch the hole first ,so if purchased this machine ,also need a punching machine to do hole perforate .

Technical data:

speed Up to 700 books per hour
Air pressure 5-8 kgf
Plastic coil diameter ranger Min 8 and max 28mm (currently 2025 year dec
Hole pitch suggested

standard configuration

Thin book 6.35 (4:1 pitch )

Thicker book 8.47 (3:1 pitch )



other pitch Other pitch can be customized



Max size of paper Binding side 420mm x 300 mm
Min size of paper Binding side 72mm x 72mm
Max book thickness 23mm-24mm (currently )
Electric power 3ph 380V ,8KW


Why Is Plastic Coil Book Printing the Best Choice?

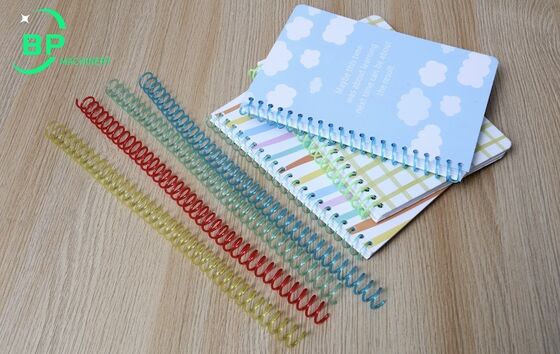

A book that is made with a Plastic Coil book binding will have a similar look to a book made with Wire-O binding, but it will have a few distinct advantages over books bound with wire.

1. Books made with Plastic Coil have a highly flexible appearance. Coils can be made in a variety of colors and sizes making them perfect for all kinds of uses.

2. Safe for little fingers and easy to manipulate, spiral books are good for all ages to use.

Some of the most common uses for plastic coil book printing are:

  • Calendars
  • Catalogs
  • Cookbooks
  • Directories
  • Educational Materials
  • Journals or Diaries
  • Marketing and Promotions
  • Planners
  • Religious Materials
  • Training Manuals
  • Workbooks
